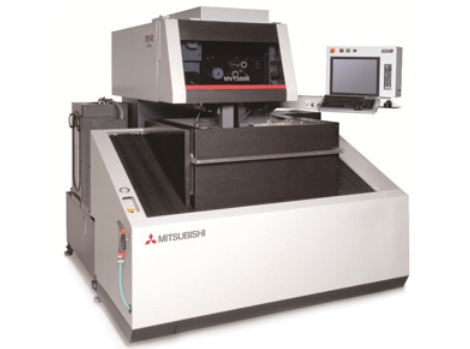

Split Axis Design - The X and Y axis ways mount diretly to the "T" shape cast base moving the table in X and the column in Y providing the best in thermal stability and rigidity for handling workpiece weights up to 1100 lbs.
Linear Shaft Motors - provide a noncontact zero wear drive system in X,Y,U & V axes that insures highly accurate table movement with zero backlash
Linear Motion Guid Ways - support X, Y, and Z axes. The size, spacing and location of these ways promote stable operation throught the entire machining range
Optical Servo Drive System - uses all fiver optics between the control, servo amps and linear shaft motors providing faster communications speed improving rseopnse time which allows unexcelled cutting accuracy and high speed positioning.
Linear Glass Scales - 2 millionths absolute scales, on XYUV axes
Intelligent Automatic Threader - Highly reliable programmable unit with a range of .004" to .010" wire. High speed threading with sumberged threading and threading mid cut. Ultra fast fill and drain allows faster hole to hole threading cycles, saving customers money on processing times.
PM5 Power Master Control - supporting up to a 50% increase in machine speeds over older EDM machines, providing direct savings to our valued customers
Table size 25.2" x 21.3"
X travel 15.7"
Y travel 11.8"
Z travel 8.7"
U and V travel 2.4"
